Magnetic components drive modern electronic design, from power supplies and motor drives to telecommunications and medical devices. Engineers often encounter inductors and chokes on the same component list and treat the two as interchangeable. MPS Industries, a U.S.-based manufacturer specializing in custom transformers, inductors, and common-mode chokes, builds both for demanding applications across automotive, industrial, medical, and aerospace markets. Learn more about what separates inductors from chokes and how to choose the right one for your circuit.
What Is an Inductor?
An inductor is a passive electrical component that stores energy in a magnetic field when current passes through a wound coil. The core material, whether ferrite, powdered iron, laminated silicon steel, or air, determines the inductance value, saturation current, and frequency behavior of the component.
How Inductors Store Energy
When current flows through the winding, it generates magnetic flux proportional to that current. The component opposes sudden changes in current through inductive reactance, which scales with frequency. At DC, it acts as a short circuit. At high frequencies, it presents substantial impedance that shapes current across each switching cycle.
Common Applications
Inductors serve as primary energy transfer components across a variety of critical power circuits. They are commonly integrated into the following systems to manage and shape electrical current:
- DC-DC converters and switching power supplies. The inductor stores energy during the on-state of the switch and releases it during the off-state to provide continuous power delivery.
- Power factor correction (PFC) boost stages. The component shapes the AC input current waveform to align with the voltage, maximizing efficiency and reducing reactive power losses.
- High-current power stages. These devices smooth current ripples in demanding automotive and industrial motor drives, as well as high-capacity battery charging systems.
What Is a Choke?
A choke is a specialized type of inductor built to block high-frequency AC while passing DC or low-frequency AC. Where a standard inductor prioritizes energy storage, a choke prioritizes impedance at interference frequencies. That shift in purpose drives changes in winding configuration and core material.
How Chokes Reduce Noise
Chokes exploit inductive reactance to block interference. Because reactance rises with frequency, a choke presents low impedance to the intended signal and high impedance to high-frequency noise, which is reflected toward its source or absorbed within the core.
Two noise types require different topologies. Differential-mode noise travels in opposite directions on the supply and return conductors, and a series choke attenuates it with inductive impedance in the signal path. Common-mode noise travels in the same direction on both conductors. A common-mode choke addresses this with a bifilar winding on a shared magnetic core: differential signal currents cancel magnetically while common-mode currents see full inductive impedance.
Common Types of Chokes
Most chokes are classified based on FCC EMI/RFI compliance standards into audio frequency chokes (AFCs) and radio frequency chokes (RFCs). While AFCs suppress signals above 30 kHz, RFCs utilize specialized ferrite or iron powder cores to attenuate high-frequency radio interference. Engineers typically select from three primary configurations depending on their noise mitigation goals:
- Power line chokes. These components filter electromagnetic interference (EMI) from incoming AC power lines in industrial machinery and consumer electronics.
- Common mode chokes. These configurations suppress shared-line interference across signal lines, switch-mode power supply (SMPS) inputs, and high-frequency motor drive outputs.
- RF chokes. These variants isolate radio frequency signals to prevent crosstalk and signal degradation in telecommunications and radio frequency circuits.

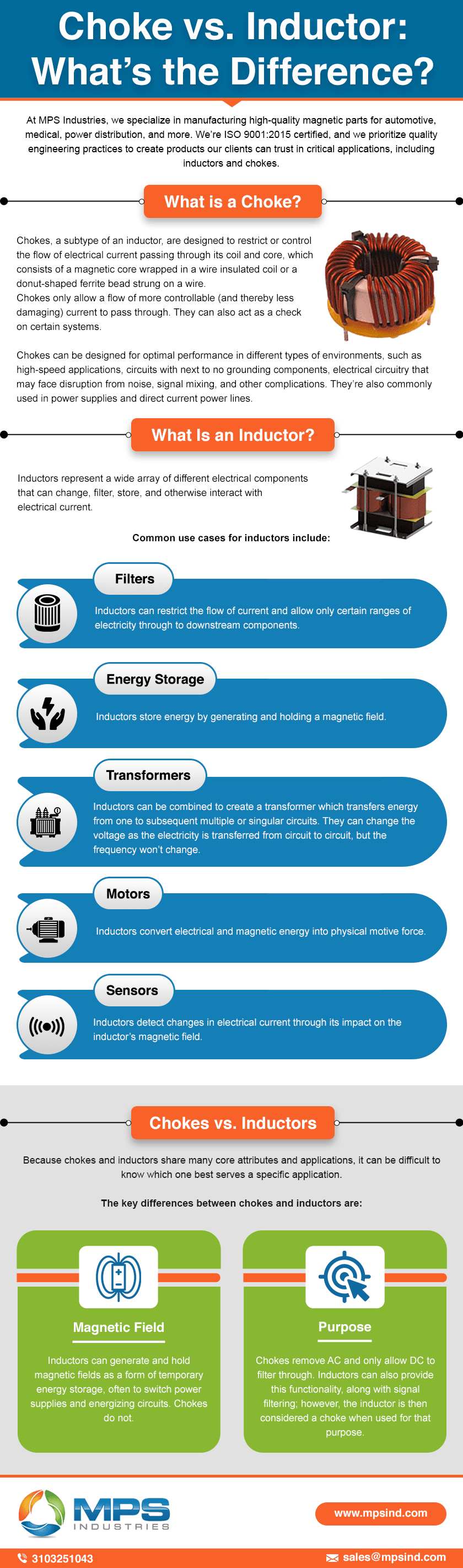

Choke vs. Inductor: Key Differences
The two components share a physical foundation but diverge in purpose, construction, and performance targets. Treating them as synonyms leads to selection errors that surface as radiated emissions failures or EMC non-compliance.
Design and Performance Differences
A standard inductor datasheet leads with the inductance value and saturation current. A choke datasheet leads with impedance at target frequencies and insertion loss in decibels (dB). A common-mode choke also uses a bifilar winding on a high-permeability ferrite core, so differential signal fields cancel while common-mode currents see full inductive impedance, a configuration no standard inductor shares. For a broader look at how inductors and chokes fit within the wider family of magnetic components, see our Magnetic Components 101 overview.
Choosing the Right Component
A standard inductor fits when energy storage and low DC resistance drive the design, or when the component must handle significant DC bias without saturating. A common-mode choke fits when the circuit must pass EMC or EMI testing, or when common-mode currents generate interference on power or data lines. In many power designs, both appear together: the inductor manages energy transfer, and the common-mode choke handles EMI compliance.
