What Is the Difference Between a Balun and RF Transformer?
Baluns and RF transformers are two distinct types of transformers – while they share similarities, they have many key differences in terms of operational functions and characteristics. In this blog, we’ll overview these two transformer types and their distinctions.
Balun Transformers

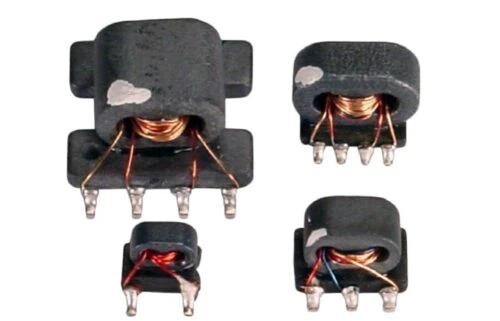

Balun transformers are used to convert an unbalanced signal to a balanced signal and vice versa. Commonly used in telephone lines, transmitters, and more, baluns optimize the flow of AC signals and transform impedance between coaxial cable and balanced loads.
RF Transformers
RF transformers are used to match impedances, isolate DC currents between circuits, and perform current or voltage step-up or step-down.
What’s the Difference Between Balun and RF Transformers?
Baluns and RF transformers have many overlapping functions, properties, and fabrication methods. Some baluns can even be considered modified RF transformers. Although they can be easily mismatched, each of these transformers have unique characteristics and purposes that differentiate them. Baluns and RF transformers work to optimize interactions between circuits and signals; however, they operate in different ways to do so.
Baluns convert an unbalanced signal to a balanced signal, and they are commonly used in communications applications to allow for the best possible transmission. A balanced line, or signal pathway, needs two 180° out-of-phase signals within a transmission pathway, while unbalanced pathways consist of a single signal with a ground plane return path. One way to fabricate baluns is by properly configuring one grounded and one floating winding-based transformer with a delay line.
RF transformers, on the other hand, use magnetic couplings between two or more circuits to isolate or transform current, voltage, or impedance amongst the coupled circuits. Commonly used in high frequency signal applications, RF transformers are typically composed of twisted-pair or coaxial transmission lines wound around a toroidal ferromagnetic core. However, they are also available in thin-film, thick-film, and planar varieties.
